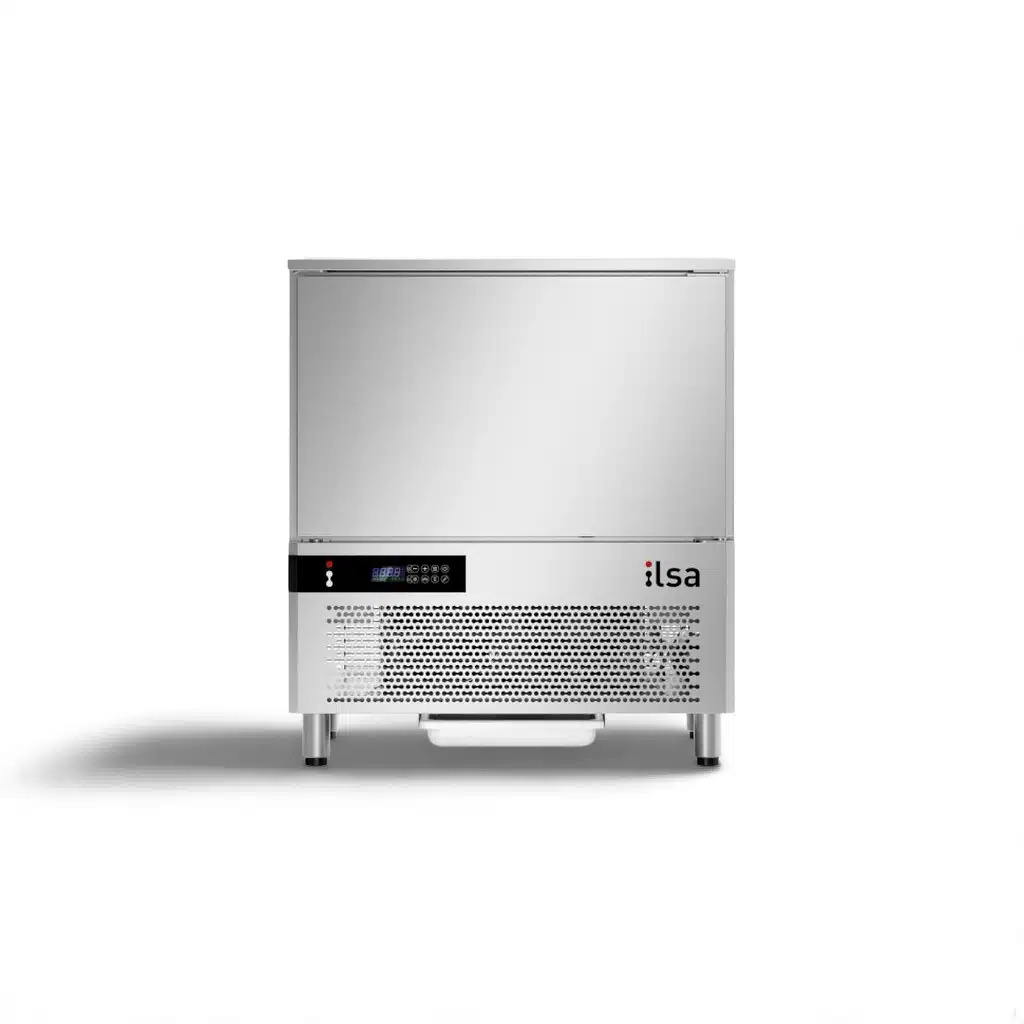

BLAST CHILLER

Blast Chiller Specifications

• Model: AB05N5010
• Brand: Ilsa
• Made in: Italy

Design and Build

• Structure: Monobloc structure in stainless steel AISI 304 with scotch-brite satin external finish
• Insulation: 60 mm thickness with high-density polyurethane foam (40 kg/m³)
• Feet: Adjustable steel feet
• Internal Corners: Rounded for easy cleaning
• Evaporator: Easy access for better cleaning
• Tray Accommodation: Easily removable structure for GN 1/1 or 60×40 trays
• Door: Reversible spring return, equipped with removable magnetic gasket and door micro switch to stop the fan when open
• Air Flow: Frontal air flow inside the technical compartment for even distribution

Operating Cycles

• Operating Cycles: 6 different cycles

Electrical Specifications

• Power Supply: 230V / 50Hz single-phase
• Power: 1500W

Physical Specifications

• Dimensions: 784 x 800 x 900 mm
